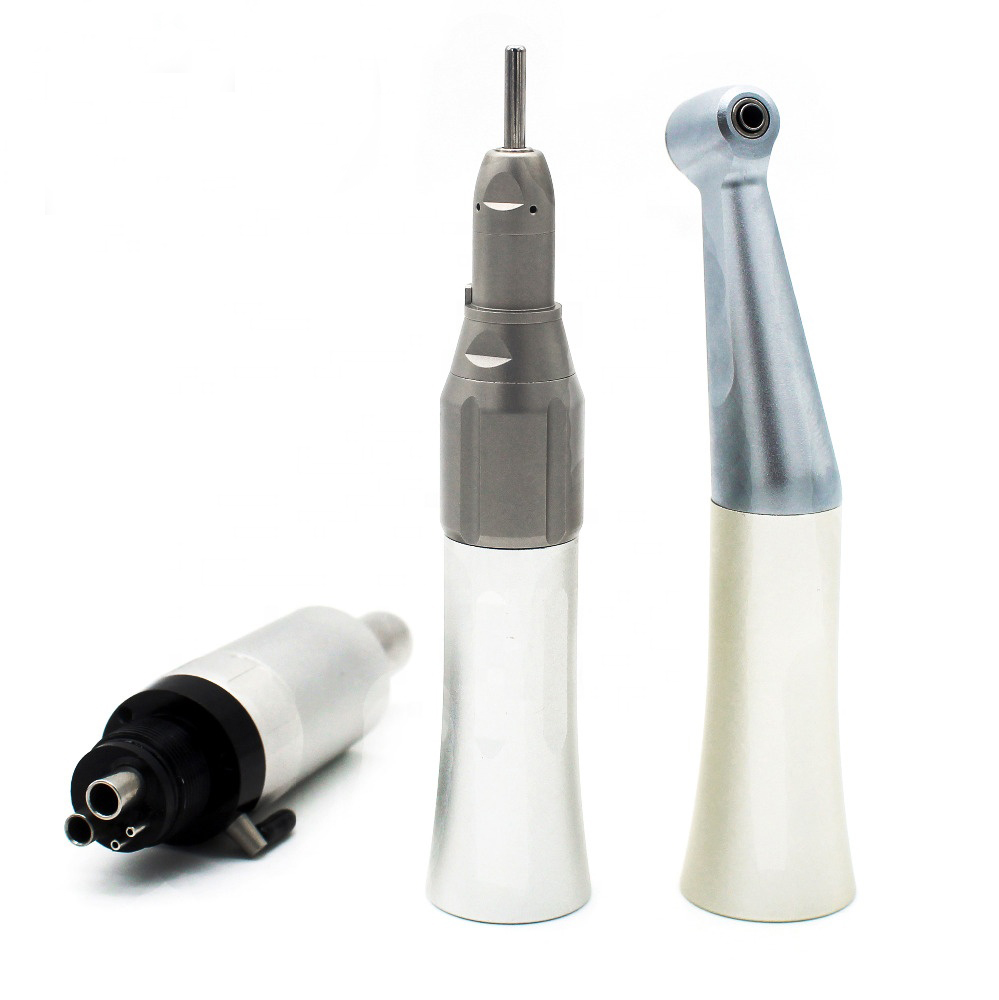

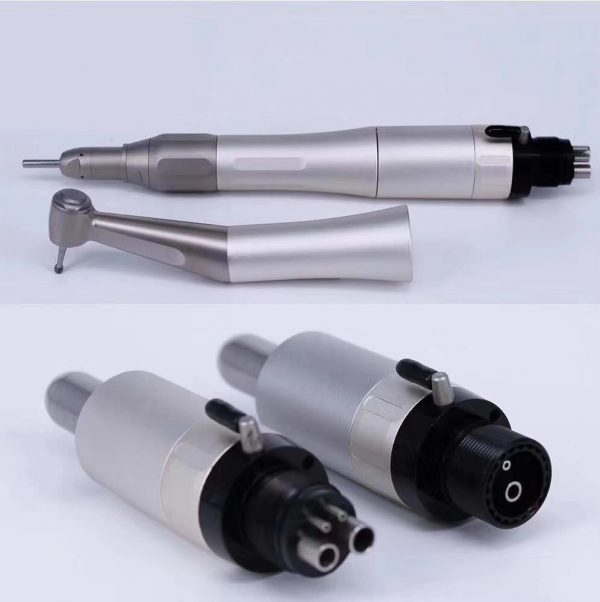

Air motor
– Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
– 1:1 Direct Drive
– Midwest 4 holes and Borden 2holes
– Max speed 20,000 min-1

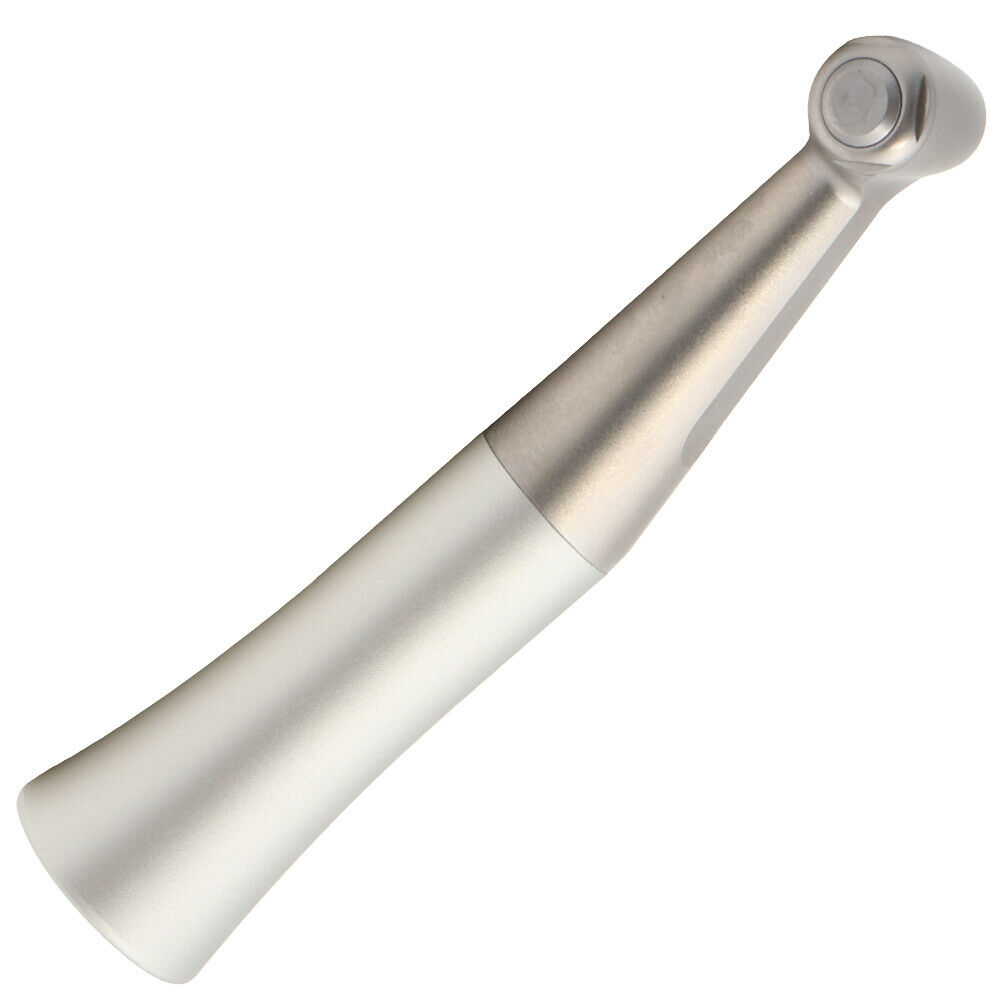

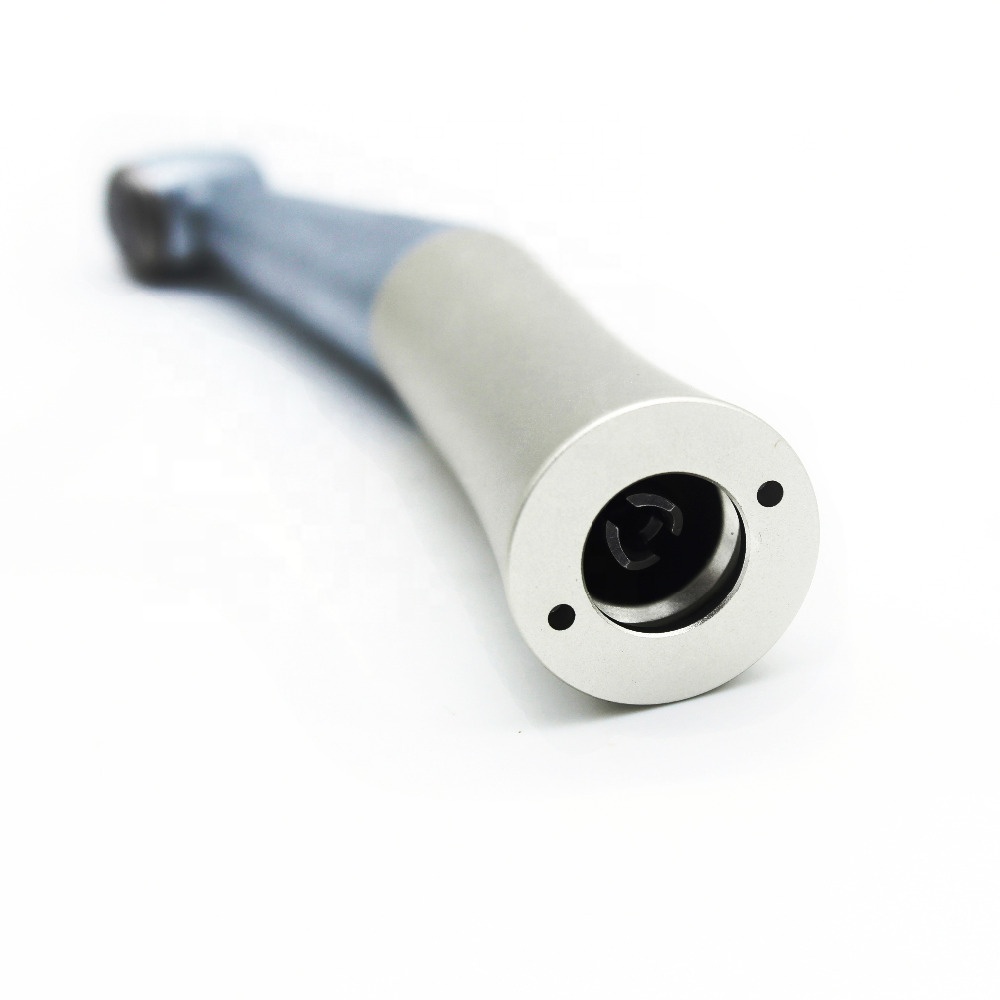

Contar angel handpiece
– Low Speed 22,000-27,000 rpm.
– The shank of the instrument mounted therein is 2.35 mm
– Fastening of the instruments with a turning latch
– Autoclavable 135°C
– Compatible with E-type motors
Straight head
– Working pressure: 0.3MPa (4-hole);
– 0.25MPa (2-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
– Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
– Noise: ≤68dB
– Air consumption: about 56L/min
– Ratio: 1:1
– Max speed of contra angle: 25000rpm/min.
